K type / E Type Output Infrared Thermocouple

  •  Type-K/E  Infrared Thermocouple
  •  Type-K/E  Infrared Thermocouple
  •  Type-K/E  Infrared Thermocouple
  •  Type-K/E  Infrared Thermocouple
  •  Type-K/E  Infrared Thermocouple
 Type-K/E  Infrared Thermocouple Type-K/E  Infrared Thermocouple Type-K/E  Infrared Thermocouple Type-K/E  Infrared Thermocouple Type-K/E  Infrared Thermocouple

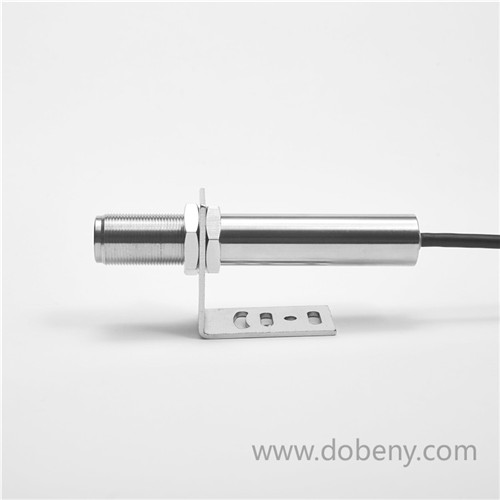

Type-K/E Infrared Thermocouple

  • Power:6-24VDC
  • Output: K、E thermocouple
  • Field of View: 15:1
  • Product description: Outputs K or E infrared thermocouple is best used for measuring non-metal or coated metal surfaces.nterface directly to most of all meters, controllers, dataloggers.Protects against electrical noise.
  • INQUIRY

K-type E infrared thermocouple output has advanced infrared temperature measurement performance, standard 4-wire system design. When there is noise interference during temperature measurement or a long cable is required, it can replace the traditional thermocouple and has E-type/K-type output.

The IRT-K/E  Series produce repeatable temperature readings for use in a wide variety of

process-monitoring and quality control application


· non-contact

· K, E Thermocouple Output Signal

· Measurements to 1300°C (2372°F)

· interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

· Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets


General Specifications

Temperature Range:  0~1300℃ (See To Order chart

Supply Voltage:  6-24 Vdc

Output:  KE thermocouple

Field of View:  151 See To Order chart

Accuracy: ±2℃ or 1%, whichever is greater    (when environment temperature is 23±5℃)*

Repeatability: ±1°

Emissivity Setting Range:  Fixed at 0.95

Emissivity Setting Method:  User Adjust  emissivity

Response Time:  100 ms

Spectral Range:  8 to 14 μm

Construction:  Stainless Steel 304

Dimensions:   107 L x 18 D mm

Mounting:  two mounting nuts

Cable Length:  2m (7') (included) longer lengths available to order

Weight:  400g with 2 m(7') cable

Environmental Rating:  IP65

Ambient Temperature Operating Range:  0 to 50°C (32 to 122°F)

Relative Humidity: 95% max non-condensing


Maximum distance and size of measurement point

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:


Ordering information IRT(Field of View)-(Pre-Calibrated Temperature Range)(Thermocouple Type).

Ordering Examples: IRT15-500KField of View:15:1thermocouple Type K, 0 to 500°C
