Molten Iron Focusing Non-Contact Infrared temperature sensor IRT-CF2000A

  • Range:600-2000℃
  • Supply Voltage: 24 VDC
  • Output: 4 to 20 mA
  • Response Time: 5ms
  • Product description: Molten Iron Focusing Non-Contact Infrared temperature sensor Optical resolution up to 150:1,Built-in line laser for rapid alignment,Wide choice of models and spectral responses,Measurements to 2mm.
  • INQUIRY

DoBeny's new miniature, high performance  Molten Iron Focusing Non-Contact Infrared temperature sensor is suitable for medium frequency heating, high frequency heating, microwave heating and other environments.

DoBenys family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

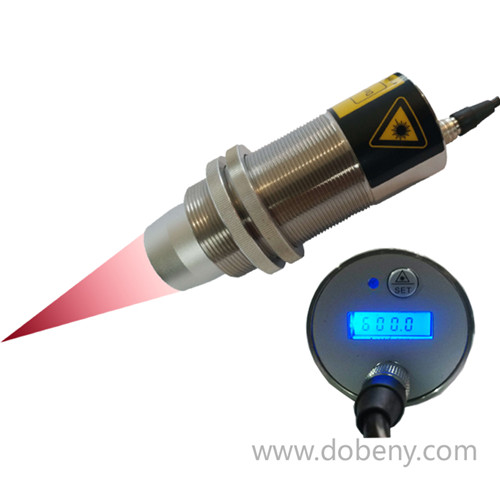

Laser indicates the measurement position, the minimum focus of the adjustable focus lens can be measured 2 mm
Spot indicates the best measurement position (200 focus 2mm and 500 focus 3mm)

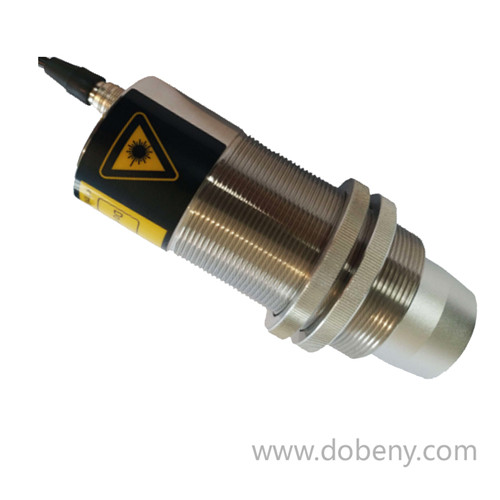

Robust and durable sensor head meets IP65 (NEMA4) standards
LCD temperature display, on-site emissivity adjustment
4-20mA and digital output optional


To Order:

Focusing Non-Contact Infrared temperature sensor CF series best for measuring high temperature metals(Foundry,Sinter Plant,Blast Furnace,Continuous Casting Processing,Forging,Metal Packaging ,High Temp Heat Treating,Hot Forming Steel Panels

,High Precision Heat Treatment in Vacuum Carburizing,High Temperature Vacuum Heat Treatment,Fasteners Heat Treatment - Hydrogen Embrittlement,Hot Rolling Mills,Tube and Pipe Mills,Rod and Wire Mills,Galvanizing and Annealing Lines,Aluminum Brazing ,Aluminum Processing,Aluminum Solution Reheat)


Model

Range

Spectral Range

Field of View

Response Time

focal length

IRT-CFL500AD

0-500

8-14μm

65:1

75mS95%

90@1.5mm

IRT-CF300AD

50-300

2.0-3.0μm

65:1

20mS95%

90@1.5mm

IRT-CF400AD

70-400

2.0-3.0μm

150:1

10mS95%

300@2mm

IRT-CF500AD

100-500

2.0-3.0μm

150:1

10mS95%

300@2mm

IRT-CF1400AD

300-1400

1.6μm

150:1

5mS95%

300@2mm

IRT-CF2000AD

600-2000

1.0μm

150:1

5mS95%

300@2mm

IRT-CF2400AD

1000-2400

1.0μm

150:1

5mS95%

300@2mm

IRT-CF3000AD

1200-3000

1.0μm

150:1

5mS95%

300@2mm




General Specifications

Model: IRT-CF2000A

Range:600~2000℃

Supply Voltage:  24 VDC

Output: 4 to 20 mA

Response Time:≤5mS(95% )

Spectral Range:1.0μm

Accuracy: ±1%, whichever is greater (when environment temperature is 23±5℃)*

Repeatability: ±1% or ±5℃ , whichever is greater    (when environment temperature is 23±5℃)*

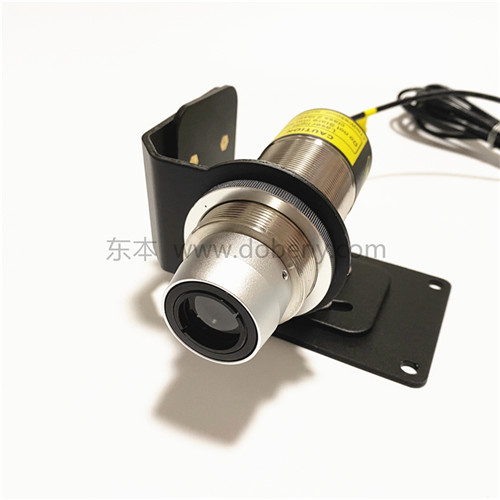

Mounting: two mounting nuts

Cable Length: 2m as standard (custom lengths also available)

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)


Dimensions:
